1.        Connect LAN port of NC-LINK device to PC wired port, and set a fix IP of your computer like 192.168.188.X

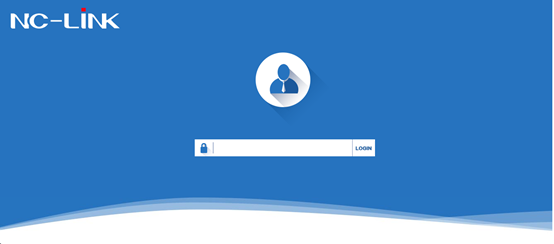

2.       Connect to the wireless of Access Point and login through browser, default ip address is 192.168.188.253

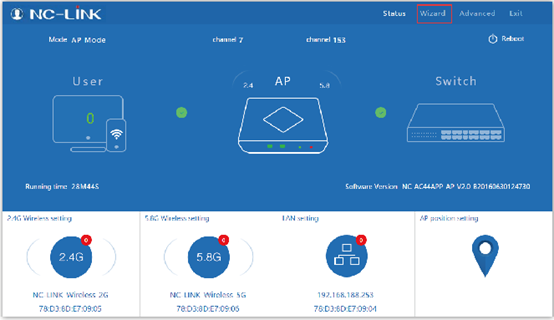

3.       After login, Click “Wizard” to start operating mode configuration.

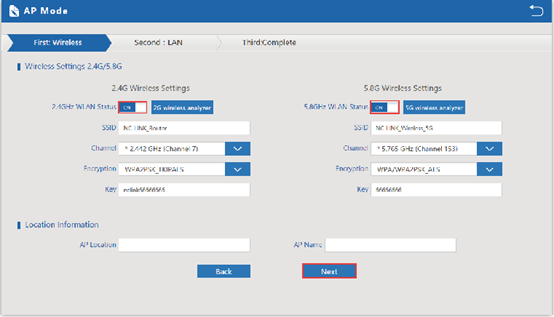

4.       Select AP Mode and Configure the wireless parameter as you want then click “Next”

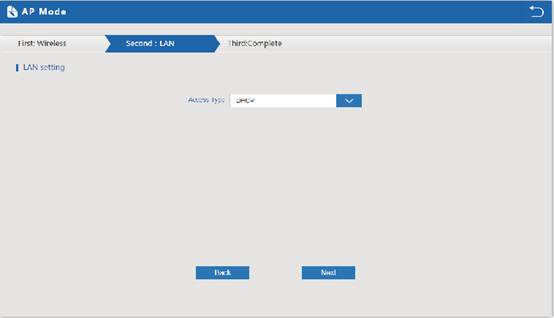

5.       If Internet to LAN Port is DHCP, just click “Next”

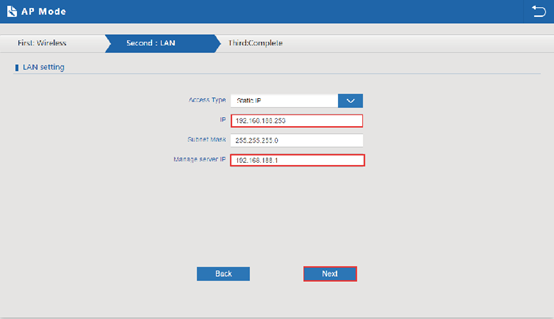

6.       If Internet to LAN Port need static IP, input as it required then “Next”

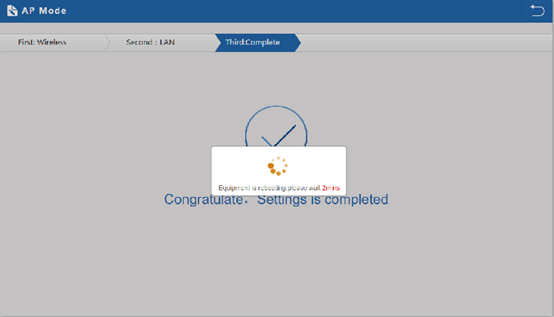

7.       Configuration complete, device will reboot in 2 minutes
