How to configure Super WDS mode of NC-LINK device

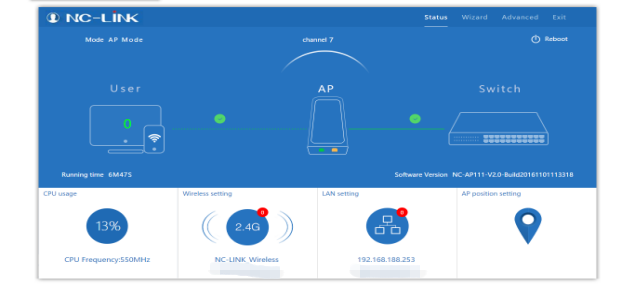

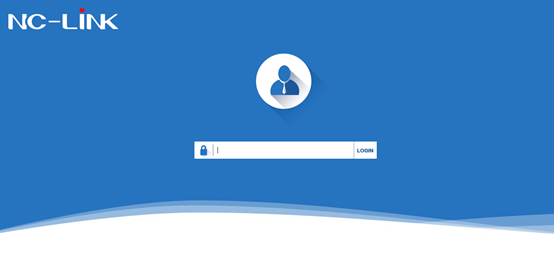

1.       Login NC-LINK device (NC-AP111 for example), default password is admin

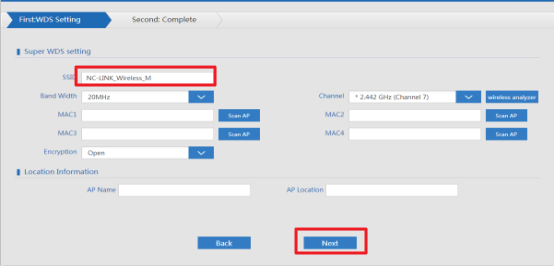

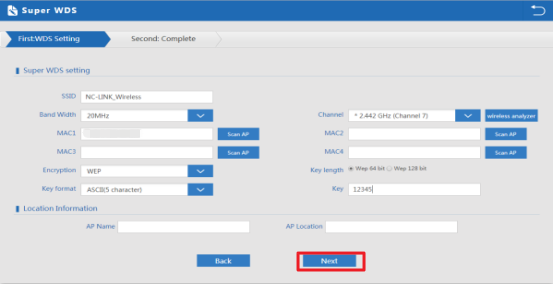

2.       Click “Wizard”-> “Super WDS” mode (set the mode to WDS), and set AP-1 SSID (it’s better to easy recognized between two APs), then click "next

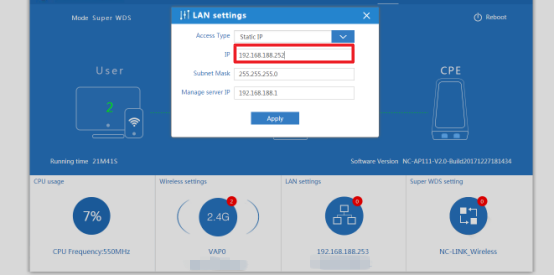

3.  Login NC-LINK device again, click LAN setting, change IP to 192.168.188.252 ( to easy recognized IP between two APs )



4.  AP-1 setting completed



5.  Login AP-2 Web UI

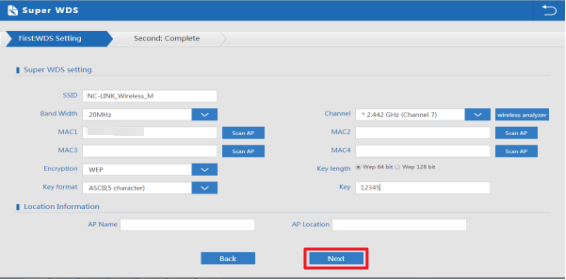

6.  Click “Wizard”-> “Super WDS” mode

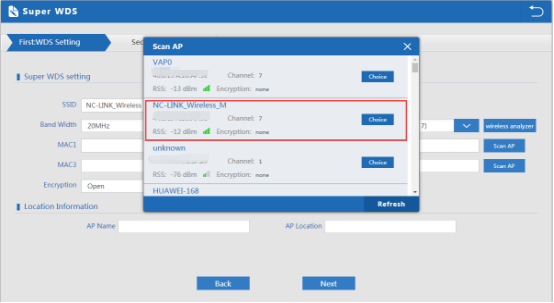

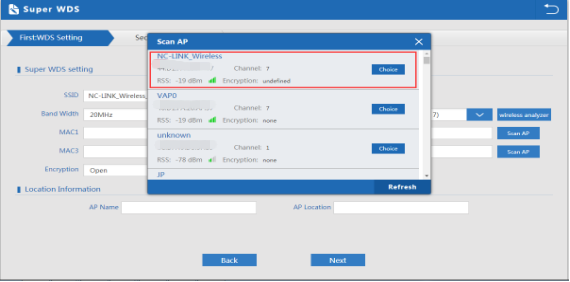

7.  Scan AP and add AP-1 to the list.



8.  Setting encryption information

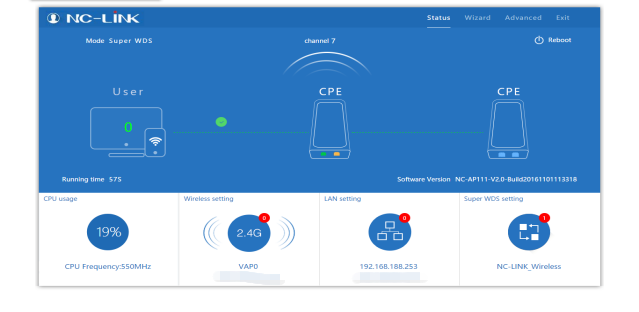

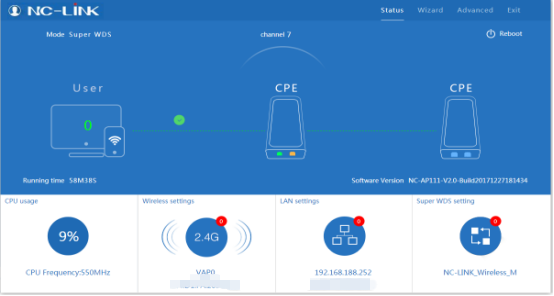

9.  AP-2 setting completed

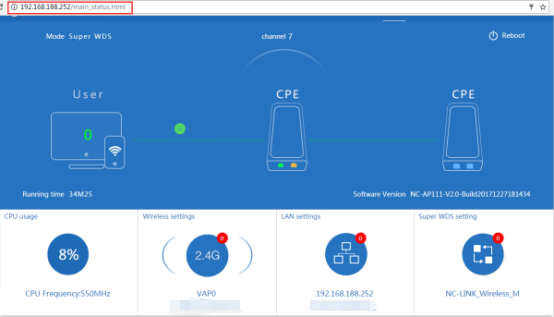

10. Login AP-1 Web UI again (192.168.188.252)



11. Click “Wizard”-> “Super WDS” mode

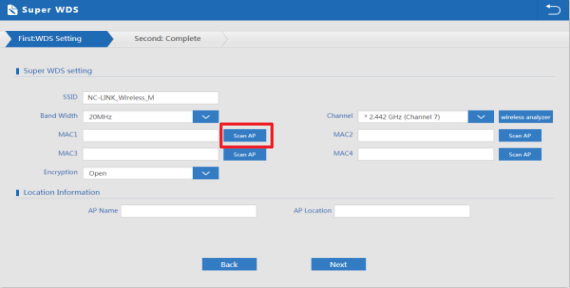

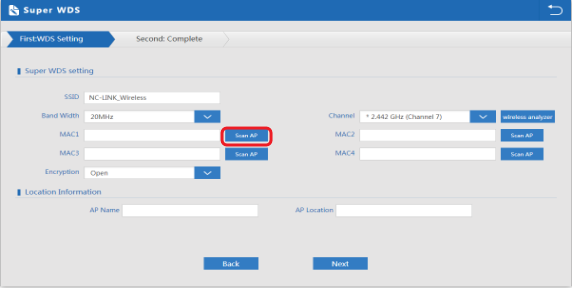

12. Scan AP and add AP-2 to the list



13. Setting same encryption information as AP-2 set

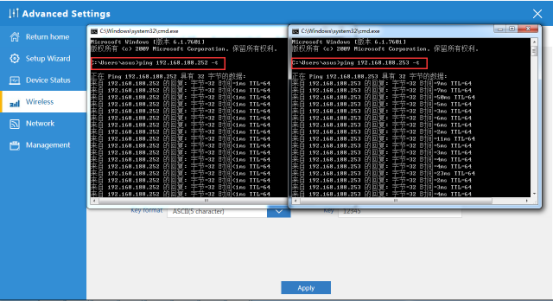

14. Verify WDS bridge succeed or not(ping 192.168.188.253 -t and ping 192.168.188.252 -t)

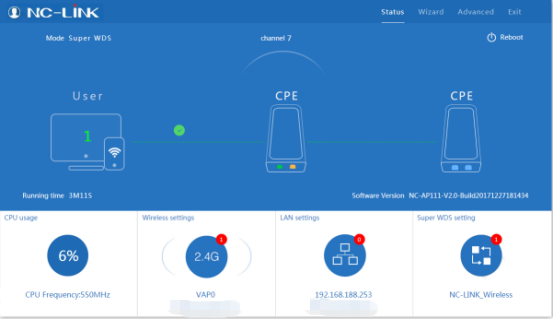

15. Super WDS configure completed
