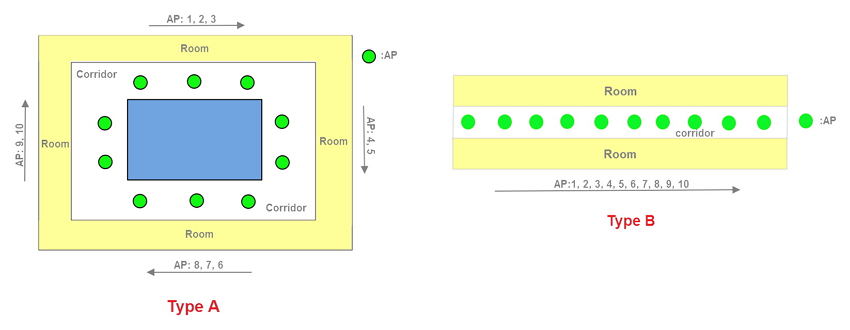

How to deploy Ceiling Mounted APs and select channels in Hotel

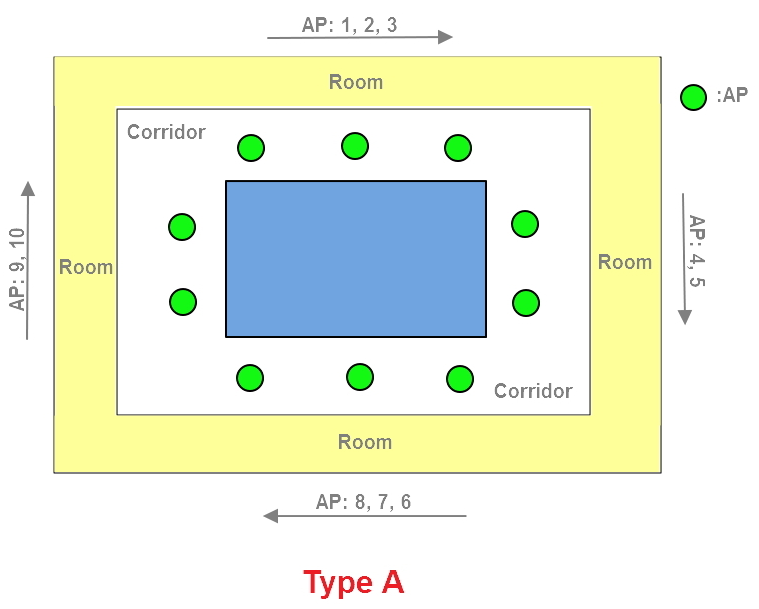

1. Type A ceiling APs deploy and select channels


Structure likes above picture, such as there is 5 floors in the hotel. And each floor deploys10 pcs APs, each AP set the channel as below:

1st Floor:  CH1,  CH6,   CH11,   CH2,   CH7,   CH10,  CH3,  CH8,   CH11,   CH5

2rd Floor:  CH5,  CH10,  CH3,    CH7,   CH11,  CH6,   CH9,  CH2,   CH7,    CH1

3rd Floor:  CH1,  CH7,   CH10,   CH2,   CH6,   CH9,   CH3,  CH8,   CH11,   CH4

4th Floor:  CH6,  CH10,  CH2,    CH5,   CH11,  CH1,   CH7,  CH10,  CH2,    CH9

5th Floor:  CH2,  CH6,   CH11,   CH1,   CH5,   CH10,  CH3,  CH6,   CH11,   CH4

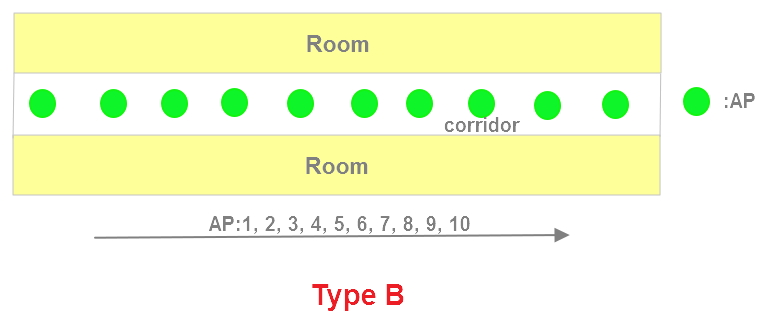

2. Type B ceiling APs deploy and select channels


Structure likes above picture, such as there is 5 floors in the hotel. And each floor deploys10 pcs APs, each AP set the channel as below:

1st Floor:  CH1,  CH5,   CH11,   CH2,   CH6,   CH10,  CH3,  CH7,   CH11,   CH4

2rd Floor:  CH6,  CH10,  CH2,    CH5,   CH10,  CH1,   CH8,  CH11,  CH3,    CH7

3rd Floor:  CH2,  CH7,   CH11,   CH1,   CH5,   CH9,   CH3,  CH6,   CH10,   CH1

4th Floor:  CH8,  CH11,  CH3,    CH6,   CH10,  CH2,   CH5,  CH10,  CH4,   CH7

5th Floor:  CH3,  CH6,   CH10,   CH1,   CH5,   CH9,   CH2,  CH7,   CH11,   CH4


These data are for your reference, specific deployment, please according to the surroundings


3. The ways of dividing channel

You can divide the channel by 1, 6, 11 when there are many APs being used at the same time. CH1, CH6, CH11 is just an example. The purpose is to stagger the channels of 2 nearby APs (up and down, left and right), so that it can reduce channel disturbance. Please choose the channel according to specific situation when the channel of 1-11 are available. At the same time, please set AP’s band width to 20MHz. Otherwise, the disturbance will be serious when the APs deploy densely.
