How to install NC-LINK Ceiling Access Point


Install the ceiling Access Point as follow steps:

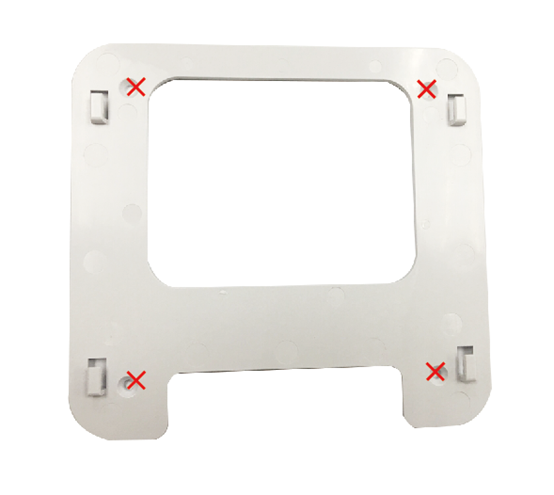

1. Position the mounting kit to the desired location and drill the mounting hole after using a pencil to mark them.

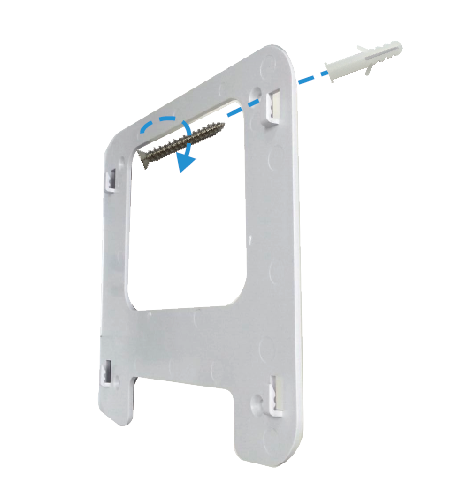

 2. Insert the screw anchors into the mounting holes, fasten the mounting bracket to the wall with a cross screwdriver.

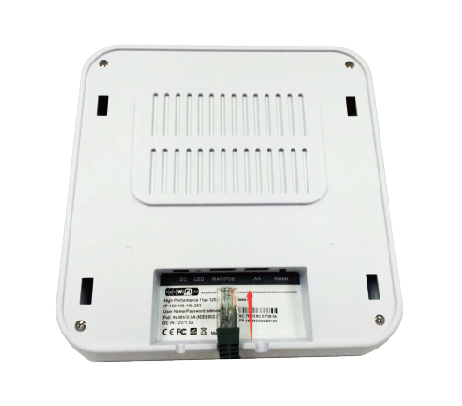

3. Connect the Ethernet Cable into the WAN/PoE port.

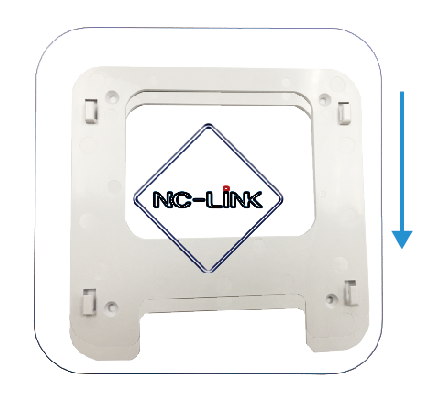

4. Slide the NC-AC44APP as the arrow shows to lock it into place.
